- SKU:MV-1241
- 1000
276.99 $
In stock
Manufacturing to order
Exclusive details
100% guarantee
Highest quality materials

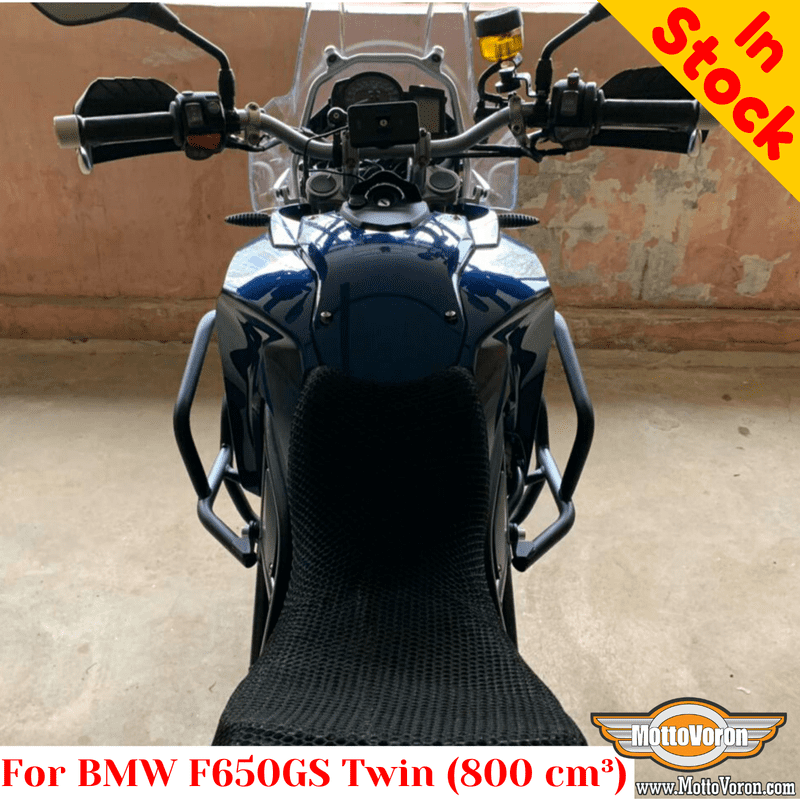

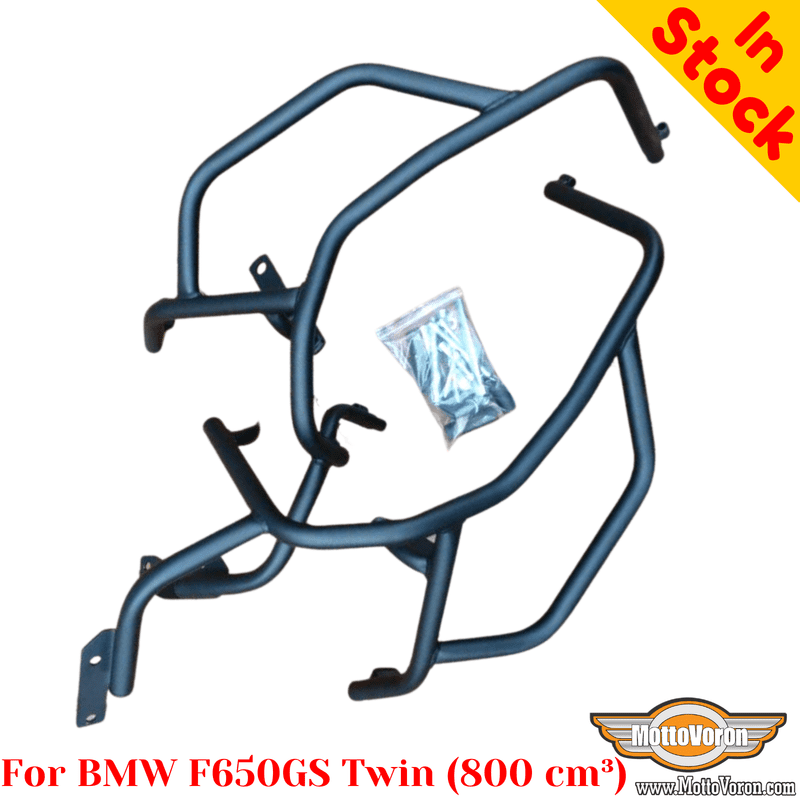

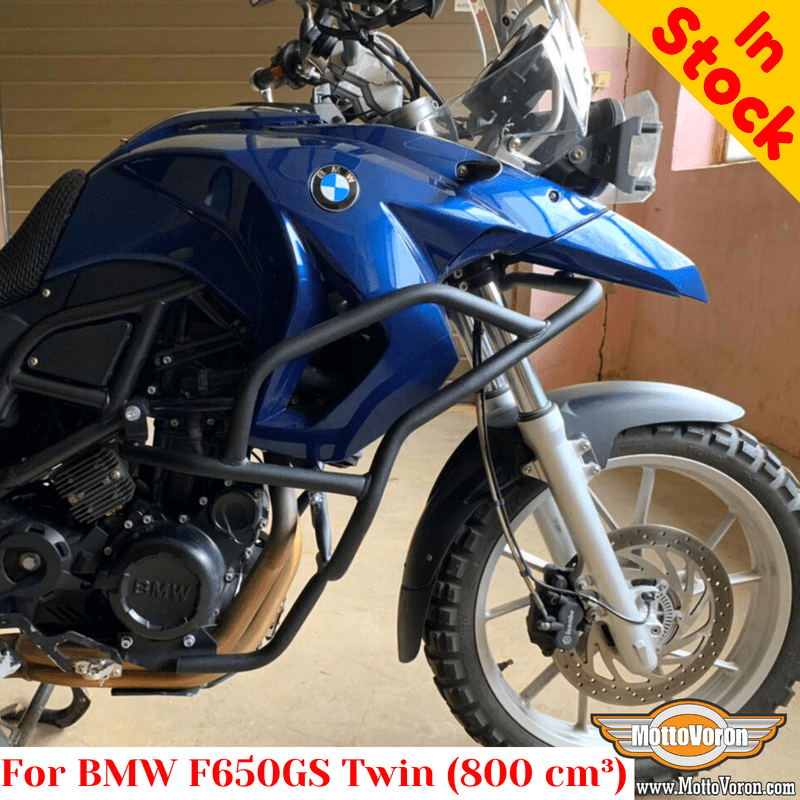

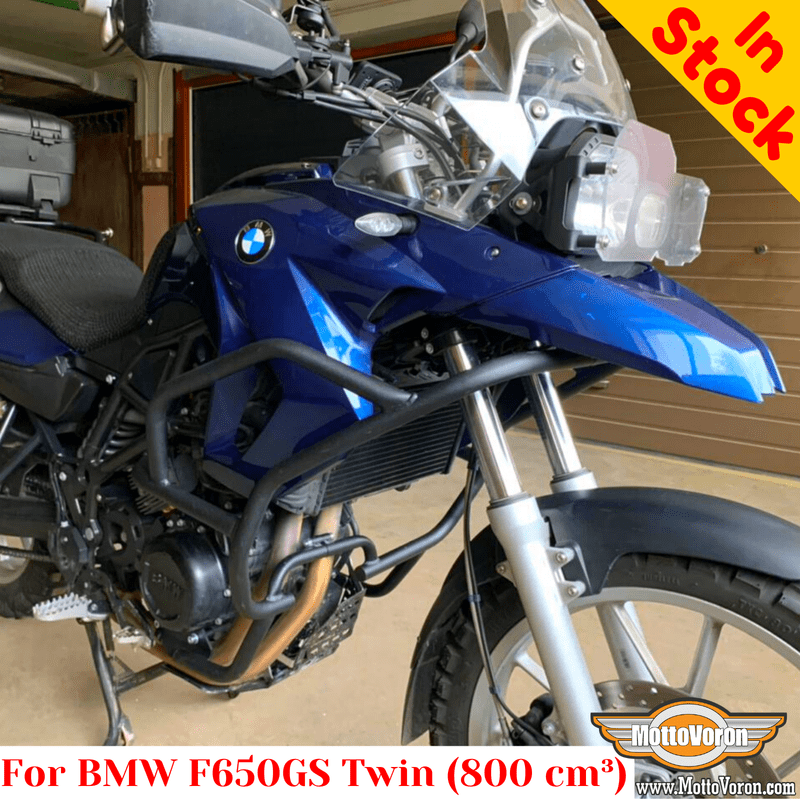

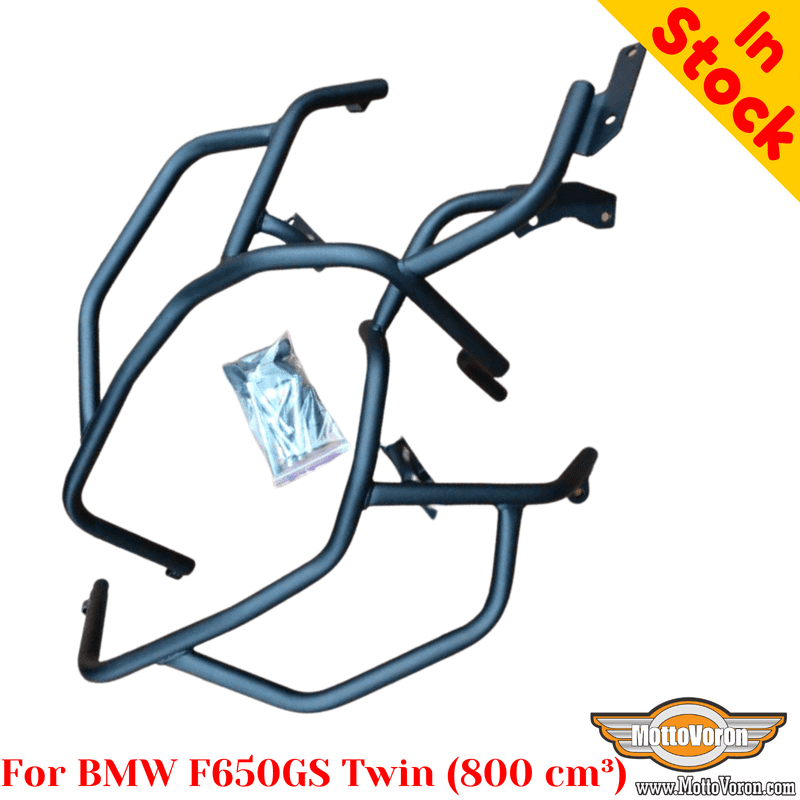

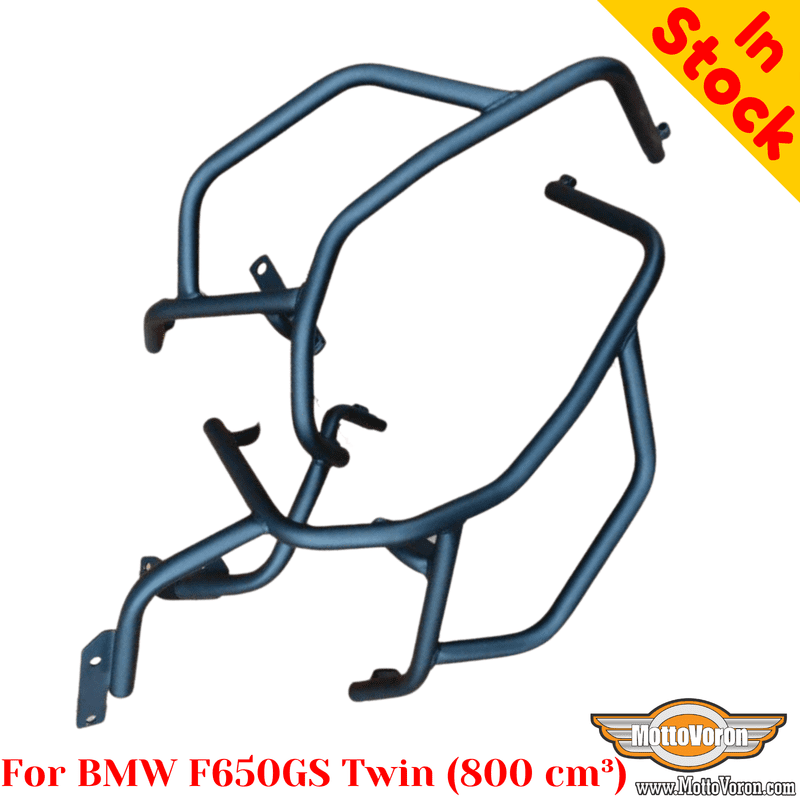

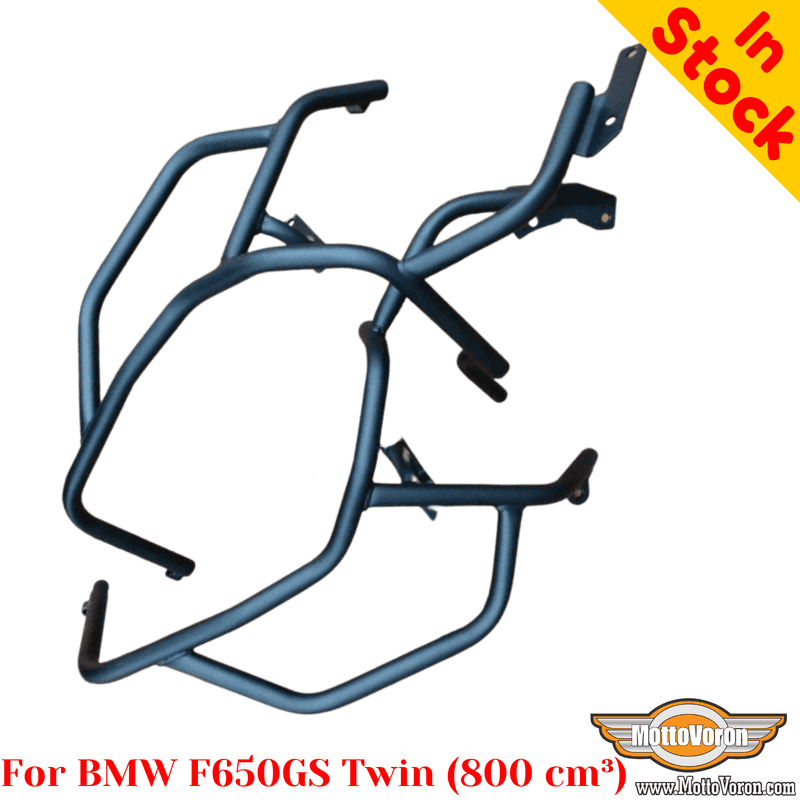

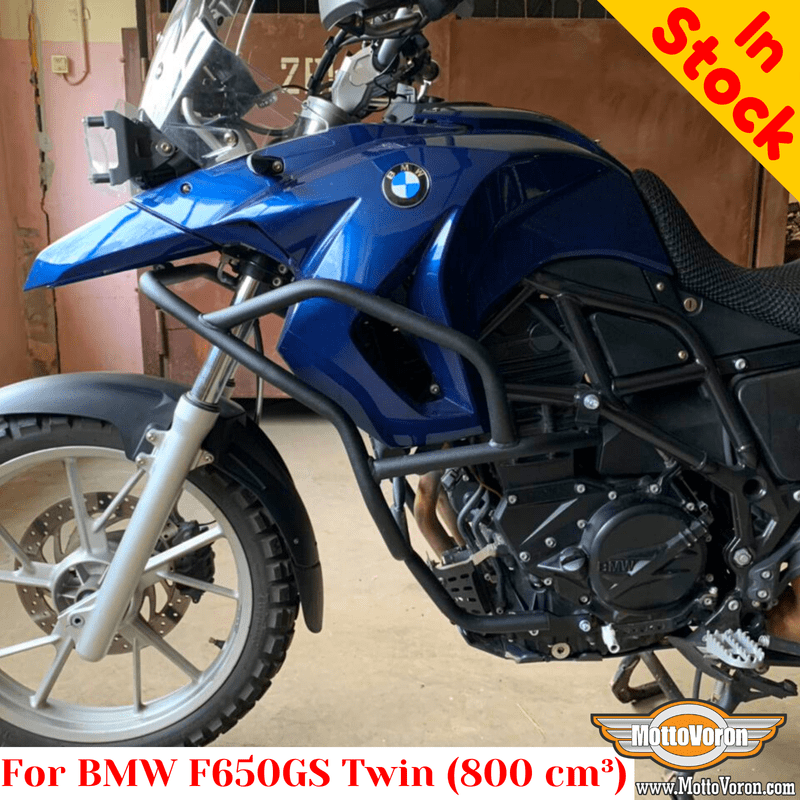

BMW F650GS TWIN сrash bars, engine guard is:
Comfort:
The crash bars are designed to protect the plastic, engine and frame of the motorcycle during falls. Reduces repair costs.
Safety and roadside assistance:
Crash bars are installed only on the factory mounting points without additional modifications (When ordering the product, make sure that your motorcycle has the same model, year of manufacture and standard appearance as in the photo). The kit includes all the necessary hardware for installation.
Manufacturer:
MottoVoron®
Specifications:
Crash bars and engine guards are made of certified metal pipes of a special alloy.
For 800cm3 models, manufacture year 2008-2012.
Dimensions:
- pipe diameter: 25 mm
- pipe thickness: 1,5 mm
Painting:
Our products are coated with durable polymer powder paint with additional wear-resistant layer. All items are available in standard black color and are shipped within 3 business days (Monday through Friday) after placing your order. Production time for other colors (except black) is up to 20 working days.
Payment:
Before paying, make sure that your motorcycle is the same model as in the photos and product description.
BMW 650GS TWIN installation of arcs
1. Remove the side trim.
2. Check the compatibility of the right and left parts of the arcs.
3. Unscrew the engine mounting bolts on the right side (pay attention to the spacers between the frame and the engine. If they are not put back in place, the block will be damaged when tightening the bolts!!!).
4. Install the right part of the arcs.
5. Unscrew the engine mounting bolts on the left side.
6. Install the left part of the arcs.
7. Insert one into one part evenly without skewing. It may be necessary to apply force.
8. Fasten the right and left parts together with bolts and nuts.
9. Tighten all fasteners and connections.
10. Install the cladding
Locations of fasteners.
1. Upper right front mount:
Bolt M12x120, washer 12mm, bushing 67mm.
2. Upper left front mount:
Bolt M12x100, washer diameter 12mm, sleeve 41mm.
3. Upper right rear mount:
Bolt M10x110, washer diameter 10mm, sleeve 33 mm.
4. Upper left rear mount:
Bolt M10x90, washer Ø10mm, sleeve 49mm.
5. Lower right mount:
Bolt M8x50 2 pcs. Washer f8mm 2 pcs. Bushing 30mm 2 pcs.
6. Lower left mount:
Bolt M8x20, M8x35, washer f8mm 2 pcs. Sleeve 15mm.
7. Connecting fastening:
Bolt m8x50 2 pcs. Nut m8 2 pcs.
General recommendations for installing products from MottoVoron
When you receive your order, make sure that the package with fasteners is included. Until you find them, do not throw away the packaging.
Before installation, make sure that your technical skills and tools are sufficient to complete the process without problems. Otherwise, it is better to seek help with installation at a specialized service.
When installing welded luggage systems and side frames on most motorcycles, it is necessary to "release" the passenger footpeg bracket fasteners to allow the footpeg to move.
Installing protective arches on some models requires removing plastic.
Successful installation is when the product is installed on the motorcycle without "tension" and additional metal stress. In this case, the body kit you bought will please you for many years and will protect the motorcycle in case of possible falls.
Our team is always in touch and ready to help with the installation of products purchased online. If you have any problems with the installation, it is better to let us know and our specialists will promptly help.
